Grasp Planner General Parameters (Point Cloud)

Parameters that define the Point Cloud parameters used for point cloud processing

grasp_planning_node:
  ros__parameters:
    .....
    point_cloud_params:
      passthrough_filter_limits_x: [-0.50, 0.50]
      passthrough_filter_limits_y: [-0.15, 0.40]
      passthrough_filter_limits_z: [0.01, 0.70]
      segmentation_max_iterations: 50
      segmentation_distance_threshold: 0.01
      cluster_tolerance: 0.01
      min_cluster_size: 750
      cloud_normal_radius: 0.03
      fcl_voxel_size: 0.02
      octomap_resolution: 0.01

Passthrough Filtering Parameters

In order to reduce point cloud processing and iteration times, the Point Cloud Library’s implementation of the passthrough filter function is used to crop out useful parts of the pointcloud in question. This is done through setting filter limits in the X, Y and Z axes which act as the range within which points in the point cloud will be kept.

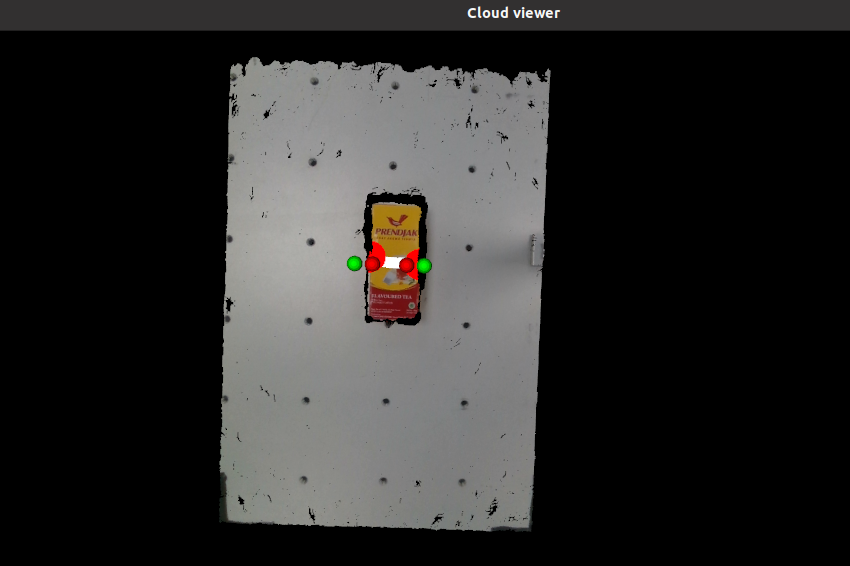

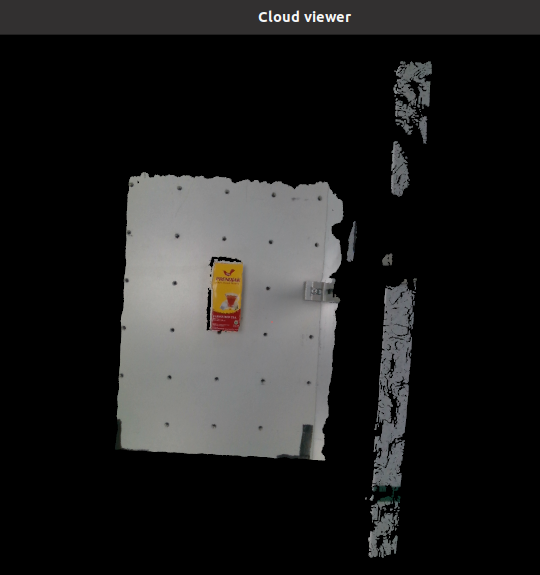

Pointcloud before filtering	Pointcloud after filtering

As shown above, unnecessary information on the right side of the pointcloud was removed. Limits can be set even tighter in order to crop out more of the work surface.

Warning

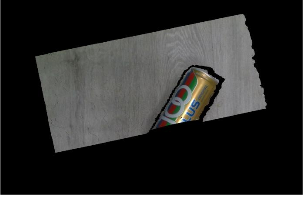

Ensure that an appropriate passthrough filter limit is chosen for the X, Y and Z axes. You might end up cropping out useful information if the limits are too tight.

More information can be found in the Passthrough Filter Tutorials

point_cloud_params.passthrough_filter_limits_x

passthrough_filter_limits_x: [-0.50, 0.50]

Description	Lower and Upper Passthrough Filter limits in the X-Axis
Type	double array

Warning

The tighter the limits, the faster the point cloud will be processed, but you run the risk of croppping out important information

The wider the limits, the slower the point cloud, but you will not crop out important information.

point_cloud_params.passthrough_filter_limits_y

passthrough_filter_limits_y: [-0.15, 0.40]

Description	Lower and Upper Passthrough Filter limits in the Y-Axis
Type	double array

Warning

The tighter the limits, the faster the point cloud will be processed, but you run the risk of croppping out important information

The wider the limits, the slower the point cloud, but you will not crop out important information.

point_cloud_params.passthrough_filter_limits_z

passthrough_filter_limits_z: [0.01, 0.70]

Description	Lower and Upper Passthrough Filter limits in the Z-Axis
Type	double array

Warning

The tighter the limits, the faster the point cloud will be processed, but you run the risk of croppping out important information.

The wider the limits, the slower the point cloud, but you will not crop out important information.

Plane Segmentation Parameters

For Object extraction, the Grasp Planner will first remove the set of points in the point cloud representing the surface on which the objects are placed. This is done using the Point Cloud Library’s Plane Segementation functions, specifically SAmple Consensus (SAC) methods

point_cloud_params.segmentation_max_iterations

segmentation_max_iterations: 50

Description	Set the Maximum number of iterations for SAC methods
Type	Int

Warning

The higher the number, the better the result, but longer times will be taken The lower the number, the less accurate the result, but shorter time will be taken

point_cloud_params.segmentation_distance_threshold

segmentation_distance_threshold: 0.01

Description	Determines how close a point must be to the object in order to be considered an inlier
Type	Double

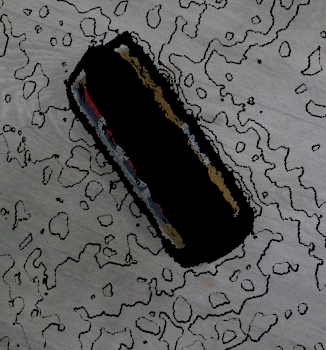

Warning

A higher number ensures that more points will be clustered with the object cluster, but you run the risk of including points on the table as part of the object

Warning

A lower number ensures that only objects really close to the cluster is included inside, but you may run the risk of missing out some points on the surface

Object Segmentation Parameters

After the plane has been removed from the point cloud input, the assumption is made that the rest of the pointcloud represents the pick objects (Unless using the EPD workflow, more on that here: Grasp Planner Input Message Types). The remaining Point Cloud will then be split into clusters using Euclidean Cluster Extraction provided by the Point Cloud Library, each cluster representing a grasp object

point_cloud_params.cluster_tolerance

cluster_tolerance: 0.01

Description	Get the spatial cluster tolerance as a measure in the L2 Euclidean space.
Type	Double

point_cloud_params.min_cluster_size

min_cluster_size: 750

Description	For Euclidean cluster extraction. Determine the minimum number of points to be considered a cluster.
Type	Int

Warning

If it is set too high, small objects may be clustered together to satisfy the minimum cluster size.

If set too small,certain objects might be split into multiple clusters if the point cloud is not dense enough

Normals Estimation Parameters

For both finger and suction gripper grasp planning, we take into account the surface of the object as well, which involves understanding the curvature of the surfaces, which requires estmation of point normals for each point on the surface of the object, which we will use the Point Cloud Library to do so.

More information on the normal estimation for PCL can be found here

point_cloud_params.cloud_normal_radius

cloud_normal_radius: 0.03

Description	The radius of points around each point to determine the normal estimation.
Type	Double

Warning

If the radius value is too big, you run the risk of including adjacent surfaces around that point, which distorts the estimated point features

FCL Collision Object Parameters

In order to account for collision between end effector and the grasp area/grasp object, we use the Flexible Collision Library (FCL) as a method to generate collision objects for both grasp samples and grasp area.

This is done by first converting the point cloud to an octomap, then to an FCL collision object. In order to speed up conversion time, we first downsample the pointcloud before conversion

point_cloud_params.fcl_voxel_size

fcl_voxel_size: 0.02

Description	Size of resulting voxels after downsampling of pointclouds.
Type	Double

Warning

If it is set too large, collision object conversion will be faster, but certain features may be lost during downsampling.

If set too small, collision object conversion will be longer, but the collision object shapes will more accurately represent the original point cloud

point_cloud_params.octomap_resolution

octomap_resolution: 0.01

Description	Resolution of octomap (Used for conversion to collision object)
Type	Double
